HYDRAULIC ELEVATORS WITH MACHINE ROOM









STANDARD TECHNICAL CHARACTERISTICS
Capacity Car Clear entrance Shaft Pit Overhead Speed
320kg 1000x900 700 1350x1400 1200 3600 0,63 m/s
480kg 1050x1200 800 1500x1500 1200 3600 0,63 m/s
630kg 1100x1400 800 1575x1700 1200 3600 0,63 m/s
800kg 1400x1350 900 1875x1750 1200 3600 0,52 m/s
1000kg 1400x1600 900 1875x1950 1200 3600 0,52 m/s
1250kg 1700x1500 1000 2500x1900 1200 3600 0,52 m/s
1500kg 1900x1750 1000 2700x2050 1200 3600 0,52 m/s

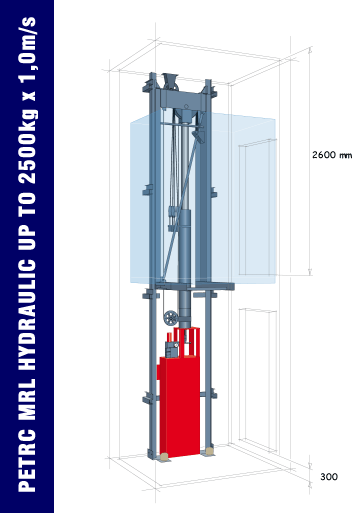

HYDRAULIC ELEVATORS WITHOUT MACHINE ROOM (MRL)





STANDARD TECHNICAL CHARACTERISTICS
Capacity Total weight Suspension Travel height Pit Overhead Speed
630kg 1500kg 2:1 up to 18m 300 2600 1,0 m/s
1000kg 2500kg 2:1 up to 18m 300 2600 1,0 m/s


For special, unique design according to the customer specifications please contact us.
