PASSENGER CONVEYORS |
|
|
PASSENGER CONVEYORS |
|

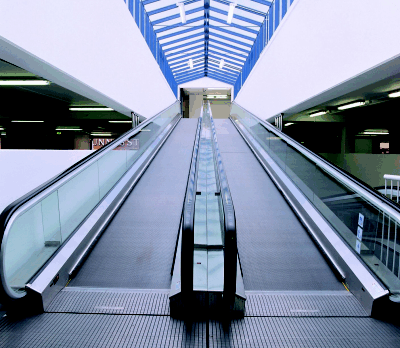

Terse and comfortable ride of numerous passengers combined with selective pallet width gives the moving walks great business appeal. Passenger conveyor are mostly used in big shopping malls, trade centers, airports, seaports, bus and train stations. Passenger conveyors can be used for horizontal or inclined transport. |
|
|
| TECHNICAL CHARACTERISTICS | |||
|
Type |
T1 | T2 | T3 |
| Inclination | 10/11/12 degrees | 10/11/12 degrees | 0 - 6 degrees |
| Pallet width | 800/1000 mm | 800/1000 mm | 1000/1200/1400 mm |
| Horizontal pallet run | 400mm (upper landing) | 400mm | N/A |
| Speed | 0.5 m/s | 0.5 m/s | 0.5 m/s |
| Capacity |
4500/6750/9000/11250/13500 passengers/hour |
||
| Power supply | AC 3-phase, 50Hz/60Hz | ||
| Balustrade design | vertical safety glass (10mm safety tempered glass) | vertical safety glass (10mm safety tempered glass) |
vertical safety glass
(10mm safety tempered glass) inclined stainless steel (2mm) |
| Balustrade profile | Stainless Steel | Stainless Steel | Stainless Steel |
| Handrail | Black (other colors optional) | Black (other colors optional) | Black (other colors optional) |
| Deckings & skirting panel | Stainless Steel | Stainless Steel | Stainless Steel |
| Pallet | Die casting aluminium, painted with silver gray. Optional black | Die casting aluminium, painted with silver gray. Optional black | Die casting aluminium, painted with silver gray. Optional black |
|
|
